Description

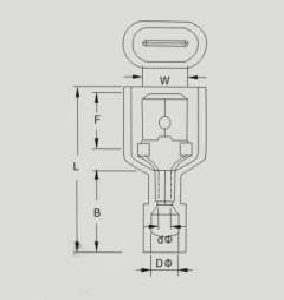

| Item No | Cable Size mm2 A.W.G. | Max Current | Connecting Spec. | Thickness of material | Dimension (mm) | Color | |||||
| W | F | L | B | Do | do | ||||||
| ENMDFN 1.25-250 | 0.5~1.5 (22~16) | 10A | 0.8 x 6.35 | 0.4 | 6.35 | 7.7 | 24.5 | 11 | 4.5 | 1.7 | Red |
| ENMDFN 2-250 | 1.5~2.5 (16~14) | 15A | 0.8 x 6.35 | 0.4 | 6.35 | 7.7 | 24.5 | 11 | 4.5 | 2.3 | Blue |
| ENMDFN 5.5-250 | 4~6 (12~10) | 24A | 0.8 x 6.35 | 0.4 | 6.35 | 7.7 | 25.5 | 13 | 6.5 | 3.4 | Yellow |
